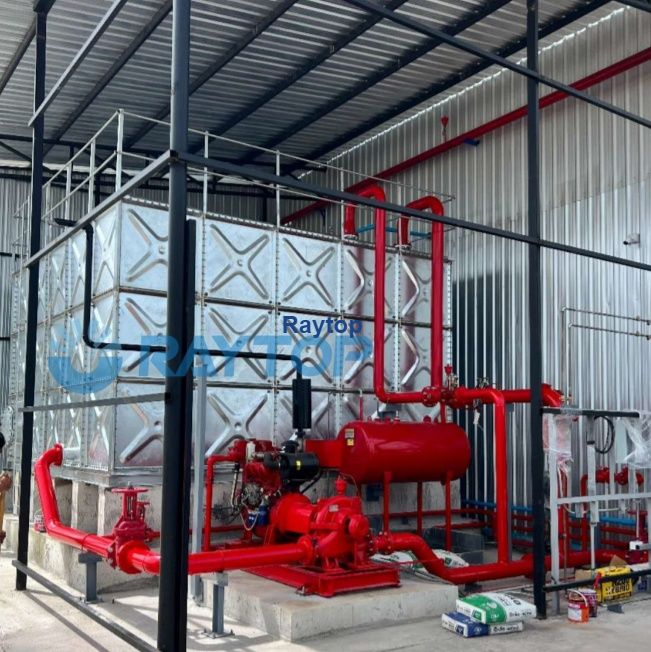

Hydraulically Pressed Tank Panels with Double Flanges Compliant with BS 1564:1975 & SS 22:1979. Hot-Dip Galvanised (HDG)

Raytop steel water tank adopt Q235 B carbon steel as substrate, pressed by advanced intergrated molding technique. The pipe teminal will welded on the panels before surface treatment (hot dipped galvanizing).

HDG water tank includes four parts:

(1) Panels ( Bottom panel, wall panel, roof panel and manhole);
(2) Internal parts ( Internal ladder, tiepiece rod, support, flanges and rubber);
(3) External parts ( External ladder, angle iron, tiepiece board, bolts and nuts);
(4) U-steel base (surface treatment can be painted or hot dipped galvanized or stainless steel).

Raytop HDG SECTIONAL WATER TANK SPECIFICATION

• Standard

1.      National Building Standard Design Atlas (12S101)

2.      BS 1564 : 1975.

• Material：

1.      Q235B raw material complying China GB/T 700-2006 Standard.

2.      Surface Zinc layer 70 um thickness complying GB/T 19001-2008 standard.

• Size & Weight

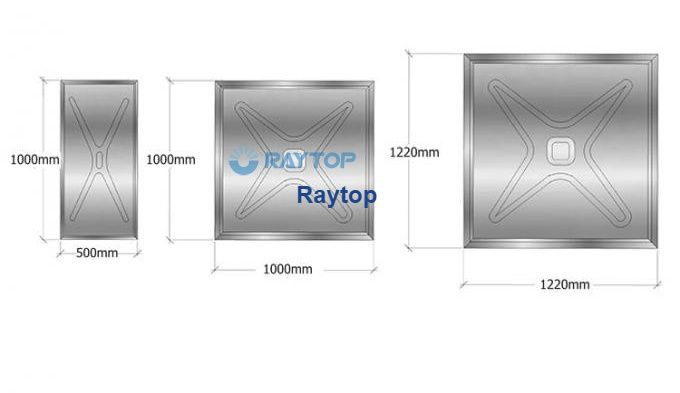

1.      The size of the steel panles are produced by standard with 4ft X4ft (1.22X1.22m),1X1m,1X0.5m and 0.5X0.5m;

2.      The panels thickness is depends on tank height; the maximum height avaliable is 5 meters

• Physical Properties
