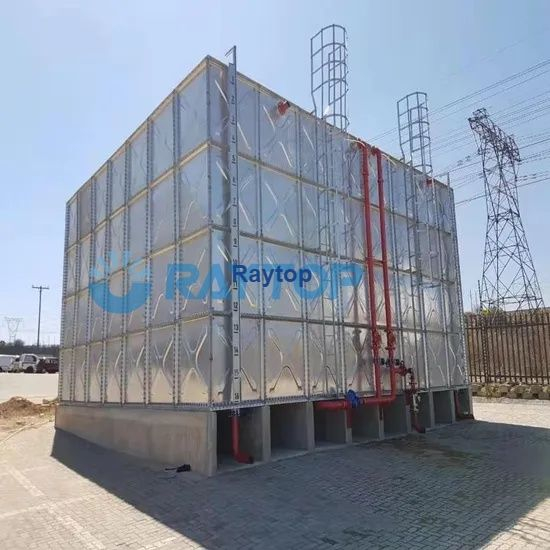

Hot Dipped Galvanized Steel Water Tank

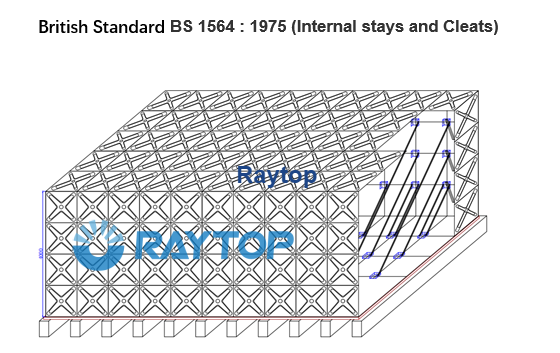

HDG water tank is the short of Hot Dip Galvanized water tank,with 90 μm thick surface zinc coating of Q235 Pressed Steel. Zinc coating can help to prevent rust and corrosion over at least 10 years.HDG water tanks are more flexible and high cost-effective.Meanwhile,the strong steel structure and zinc coating protection has made it available to be used as underground water tank. We has the capability to design and manufacture hot-dip galvanized (HDG) sectional steel water tanks according to both British Standard (BS 1564:1975) and National Standard specifications (12S101), depending on the project needs.
Tank Height (mm) | Thickness of each panel | ||||||
Bottom panel | 1st layer side panel | 2nd layer side panel | 3rd layer side panel | 4th layer side panel | 5th layer side panel | Top panel | |
1220 | 5mm | 5mm | / | / | / | / | 3mm |
2440 | 5mm | 5mm | 5mm | / | / | / | |
3660 | 5mm | 5mm | 5mm | 5mm | / | / | |
4880 | 5mm | 5mm | 5mm | 5mm | 5mm | / | |
6100 | 6mm | 6mm | 5mm | 5mm | 5mm | 5mm | |
National Standard 12S101 HDG Water Tank Structure ( Internal Vertical Support and horizontal lacing bar)
