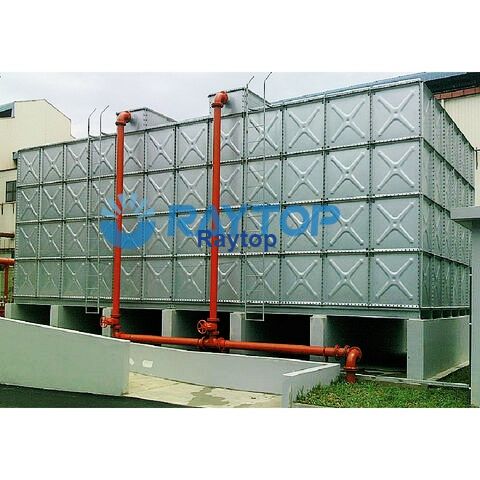

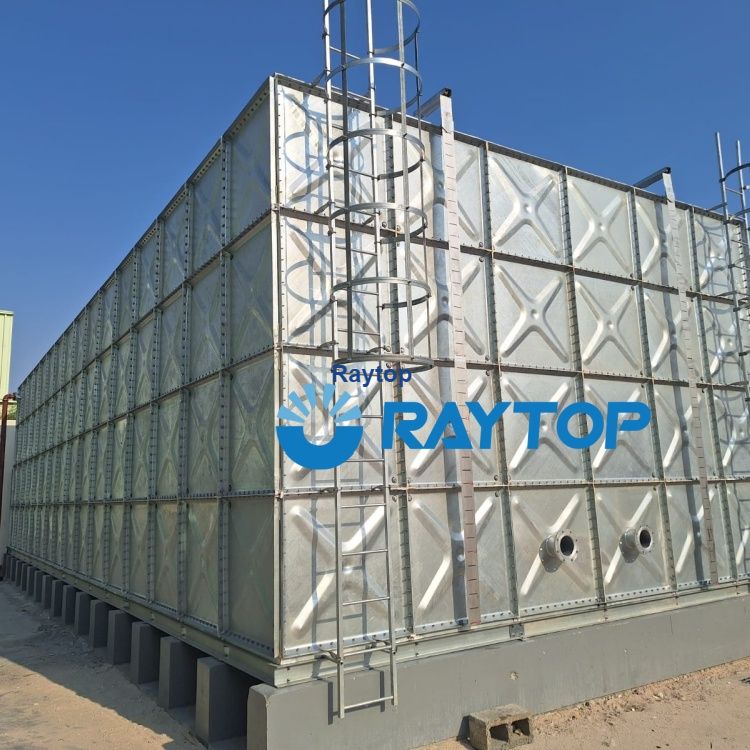

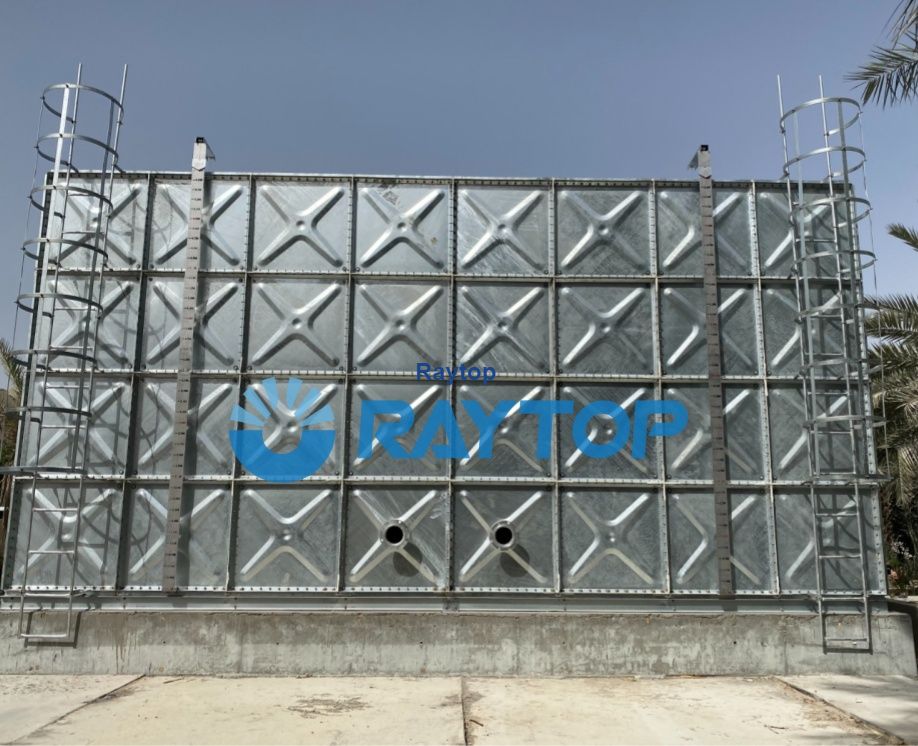

Raytop steel water tank adopt Q235 B carbon steel as substrate, pressed by advanced intergrated molding technique. The pipe teminal will welded on the panels before surface treatment (hot dipped galvanizing).
HDG water tank includes four parts:
(1) Panels ( Bottom panel, wall panel, roof panel and manhole);
(2) Internal parts ( Internal ladder, tiepiece rod, support, flanges and rubber);
(3) External parts ( External ladder, angle iron, tiepiece board, bolts and nuts);
(4) U-steel base (surface treatment can be painted or hot dipped galvanized or stainless steel).
Raytop HDG SECTIONAL WATER TANK SPECIFICATION
• Standard
1. National Building Standard Design Atlas (12S101)
2. BS 1564 : 1975.
• Material：
1. Q235B raw material complying China GB/T 700-2006 Standard.
2. Surface Zinc layer 70 um thickness complying GB/T 19001-2008 standard.
• Size & Weight
1. The size of the steel panles are produced by standard with 4ft X4ft (1.22X1.22m),1X1m,1X0.5m and 0.5X0.5m;
National Standard 12S101 HDG Water Tank Structure ( Internal Vertical Support and horizontal lacing bar)
British Standard BS 1564 : 1975 (Internal stays and Cleats)
