Introduction: The SMC panel is being made by processing SMC( Sheet Molding Compound which is made from the food grade unsaturated polyester resin with filler, acatalyzer, aparting material and reinforced with chopped fiberglass) with glassfiber mat in press moldings by high pressure and heat.
| Quantity: | |
|---|---|

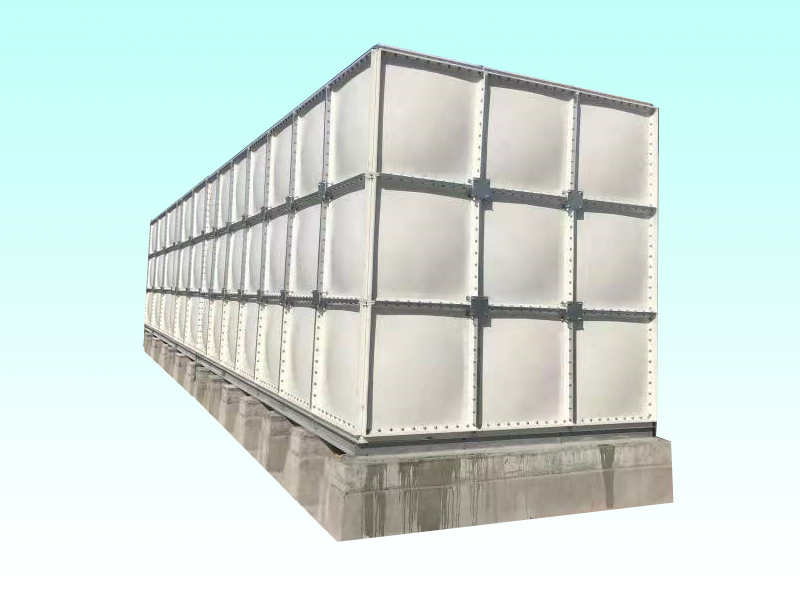

Application: Water tank is widely used in public water supply system in industry,buildings for drinking and fire fighting. SMC/GRP water tank is more and more popular all around the world now for the excellent quality and advanced lasting capability.
SMC/GRP water tank enjoys the good characters of high water quality, no leakage, rustproof, light weight, beautiful looking, long life and easy to install, also with good performance like stretch-proof, bend resistance and anti-aging. Sealed through special seal with glue, and no toxic, water resistance and small transfiguration. The water standard for Living( GB5749-85) meets the national water quality standard.

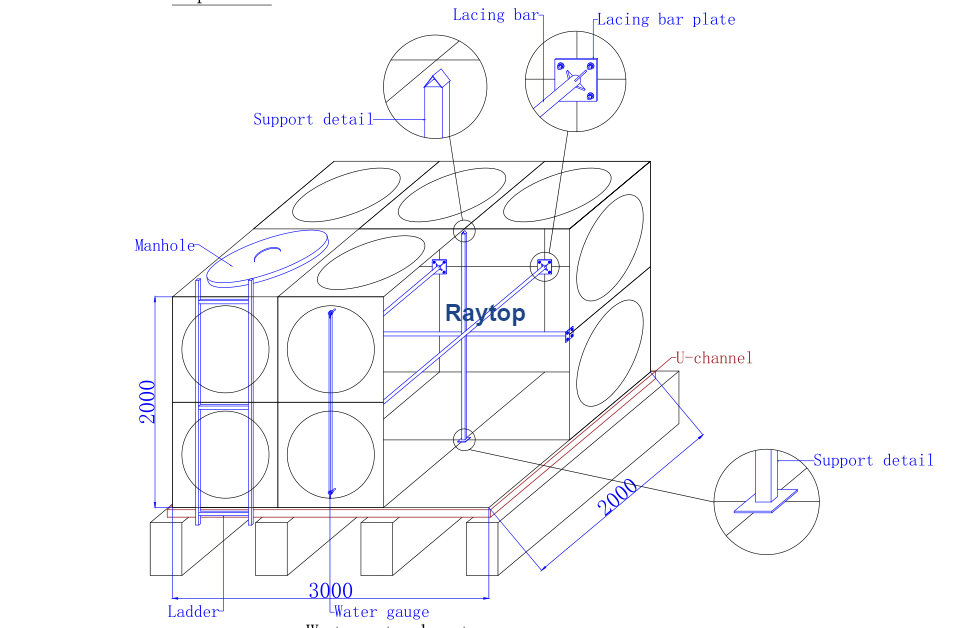

Structure:
Modular panels shall be assembled with bolts and reinforced with steel members internally or externally. It shall have enough strength to withstand the expected load including hydrostatic pressure. The sealing material is made by specialized non-toxic. EPDM tape which has stable characteristics to sustain in the water tank no leakage happened.
Each tank shall have at least 1 sealed access manhole with lockable cover (min dia 600mm) The access manhole should have a stainless steel hinged cover and be sealed to prevent the dust into tank.
Parameters;
Tensile strength (Mpa):.> 70
Bending strength(Mpa)>100
Barcol hardness (Mpa)>60
Flexural modulus (Mpa)>5900
Water absorption <1.0%
Tank panel specification is: 1000 * 1000 mm; 1000 * 500 mm; 500 * 500 mm.
Panel thickness, 5mm,6 mm, 8 mm, 9 mm, 10 mm, 12 mm, 14 mm. 5mm thickness plate special do water tank cover plate.
Advantages：
1.Environment Protection Re-Use
SMC panel type water tanks are assembled by bolts & nuts. This joints are sealed with special rubber gaskets. The unique leakage sealing method is different to the conventional hand lay-up FRP water tanks which are sealed by applying fibreglass mat and resin to the joints. Thus the SMC water tanks can be dismantled and re-assembled again without difficulty.
2.Durability
SMC (Sheet Moulding Compound) panels are made of high quality integrated Fibreglass Reinforced Polyester (FRP). With their tough and durable surfaces, they reduce repair and maintenance cost to zero.
3.Easy of Assembly
These tanks are much lighter in weight than the conventional steel or concrete tanks. They greatly reduce loading on existing building and make transportation easier. Panels are easily connected and put together by bolts & nuts.
4.Excellent Sanitation
Because the SMC panels are opaque and with excellent smooth surface finish, they restrict the growth of bacteria and germs, and thus make water more hygienic and cleaner than from the conventional steel and concrete tanks. In addition, these SMC panel type water tanks were tested by the hygienic authority in Beijing PRC & testing agency in Hong Kong for toxicity and inhibited material and were found to be in strict compliance to GB 5749-85 & BS6920 Standard respectively for use in storage of potable water.
5.Versatility
The SMC panels come in 1000mm x 1000mm, 1000mm x 500mm and 500mm x 500mm with thickness of 5mm, 10mm, 12mm, 14mm and 16mm. With final tank size varing from 0.5M³ to 1500M³ , the SMC panel type tanks are more flexible to suit the environment and the available space.
